Artec Industries 14 Bolt Rear Truss SRW

By: Artec Industries
Part #: AI-TR1401
| 0 Reviews | Write a review
Our Price: $249.99

Free Shipping within contiguous US 48 States!

Share this:

Product Description

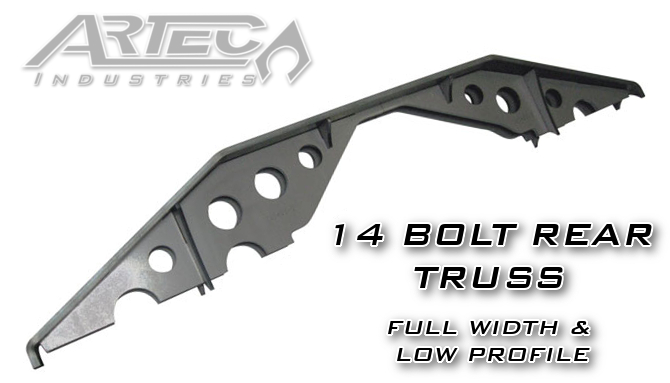

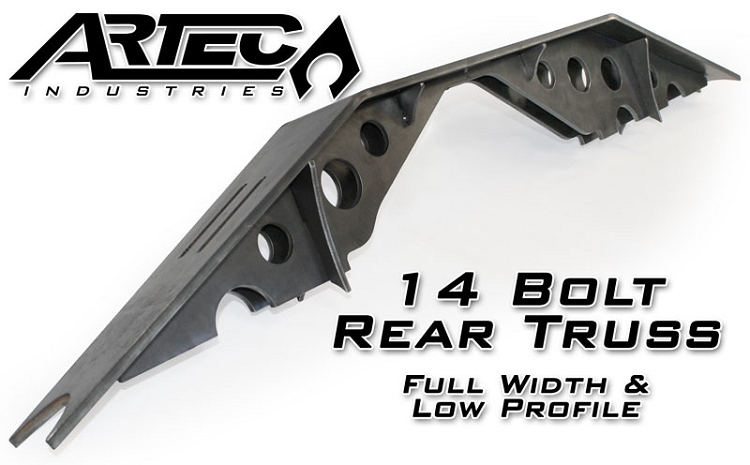

Artec Industries 14 Bolt Rear Truss

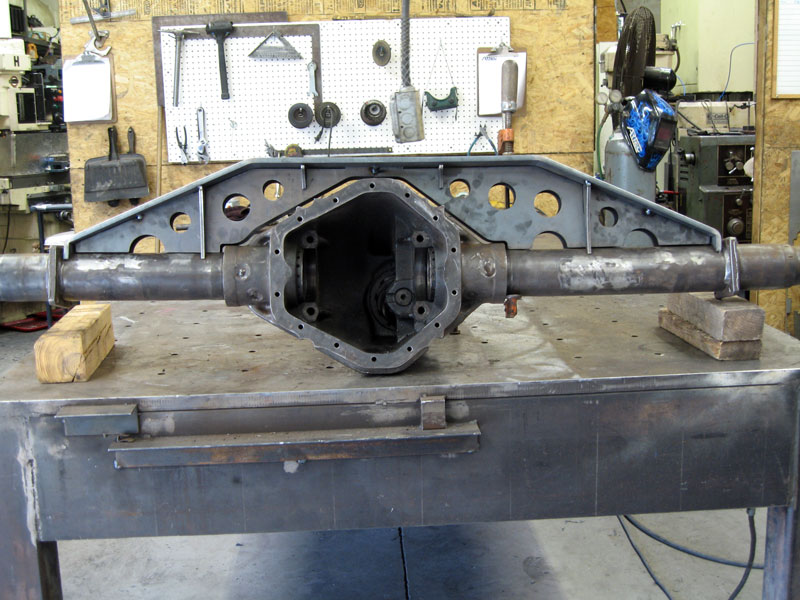

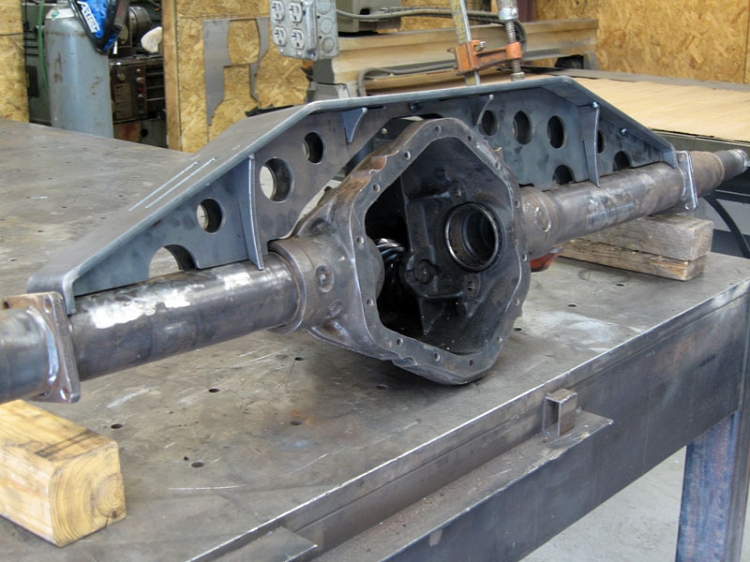

Artec Industries is excite to announce the NEW 14 Bolt Rear Axle Truss. This heavy duty truss system is designed to take serious abuse and reinforce your entire axle while also providing a flat surface to mount your upper links. The 3/8" thick truss top and 1/4" thick gussets incorporates a unique design to strengthen both the axle and the link mounting surface.

The DRW truss is just under 46 1/8" and the SRW truss is just under 51 1/4" total length.

Features include:
    • 3/8" thick mild steel truss top and 1/4" mild steel gussets. Precision CNC cut and bent for great fitment.*
    • Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle centerline.
    • Truss spans entire length of axle for complete reinforcement of the axle tubes - not just for mounting links.
    • Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.
    • Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
