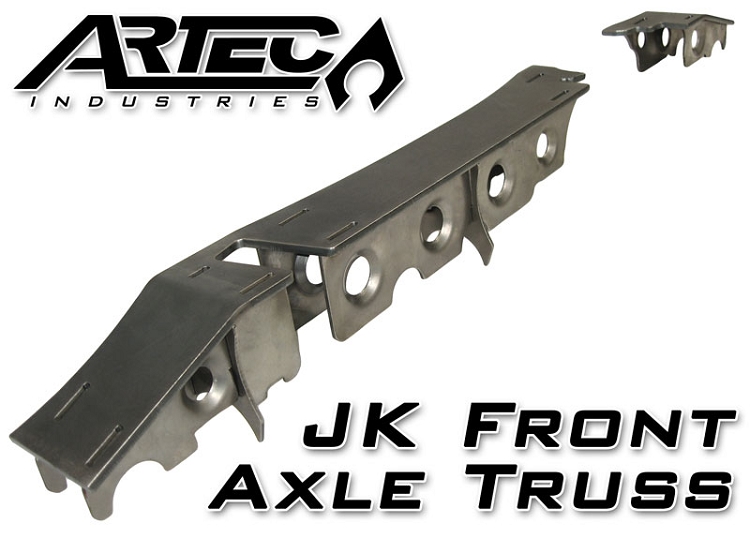

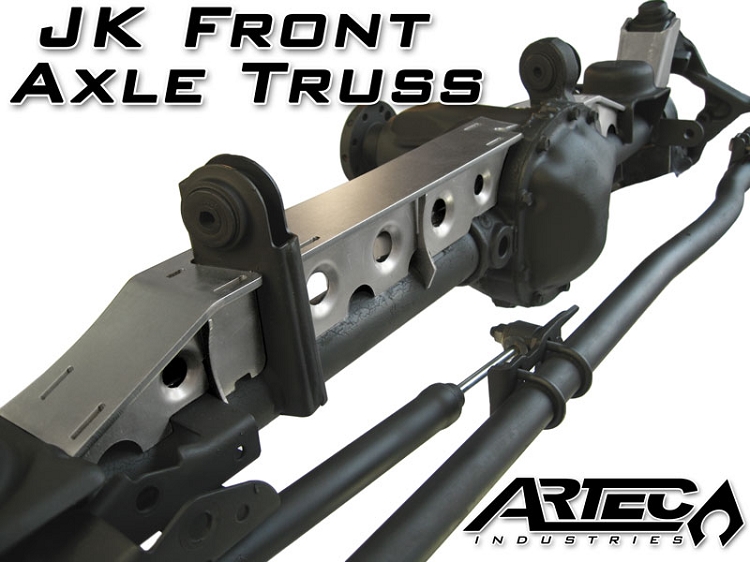

This heavy duty and light weight truss system and armor is designed to take serious abuse and reinforce your front Dana 30 or Dana 44 JK axle. The 1/4" thick truss top and 10Ga. gusseting incorporates a unique design to strengthen both axle tubes, not just the long tube (commonly found in "other" designs). The precision cut and formed components of this setup ensure a hassle-free installation.

• 1/4" and 10 gauge (.130") mild steel. Precision CNC cut and bent for great fitment.*
• Truss is low profile to allow clearance above the axle.
• Truss spans length of long side AND short side.
• Truss is reinforced using interlocked 10 gauge thick gussets for maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.

NOTE: This kit requires general welding and fabrication skills including welding to the cast center section. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
